mars vault
designed with Fusion 360
‘Mars vault’ is a project to build a structure using regolith as the primary building material & by pouring it into a mold built using additive manufacturing techniques.
Inspired by AI SpaceFactory’s ‘Marsha’ project, this method has advantages over pure additive manufacturing alone by enabling heavier, more stable structures. By using ‘dirt’ as the primary material, this is a useful method of building large structures using only local materials.
Regolith pillar was created by 3D printing a lightweight mold using polyvinyl alcohol (PVA) filament, and filling it with a mixture of sand & resin. The PVA, being water soluble, was melted away after being placed in a basin of water for 76 hours. After melting it away, one can see the beauty and innate strength of the sand once it has solidified. Resin can be replaced with a different binding agent, and experiments are ongoing to find the appropriate mixtures.

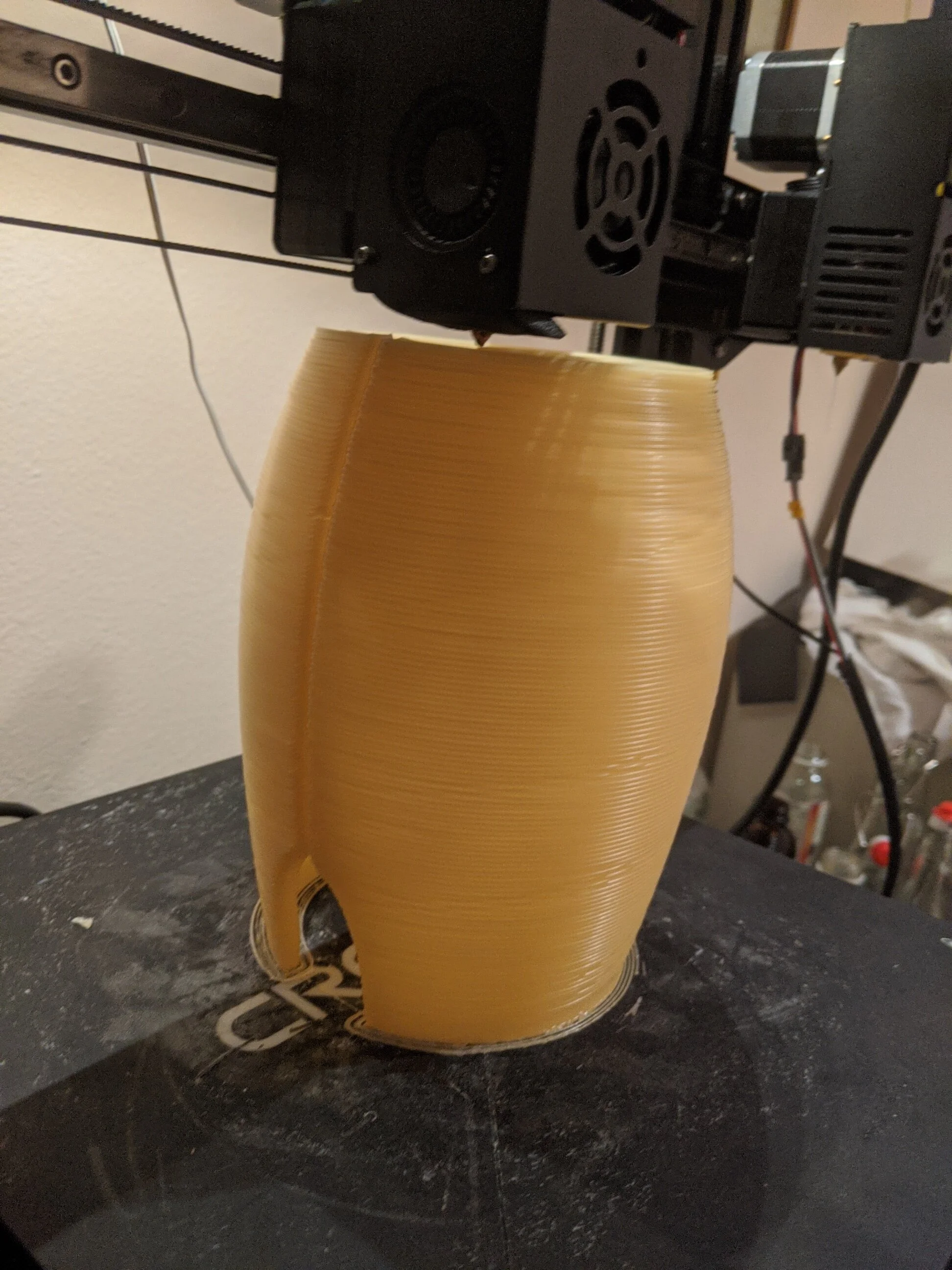

Mold being printed

completed mold

mold layer adhesion failure

sample of material resulting from print. failures due to lack of sufficient resin in regolith mixture. Upcoming test to be completed with modified resin - regolith ratio.
